GS260 fully automatic Horizontal Sawing Machine
Technical Parameter
|
Model |
GS260 |
GS 330 |
GS350 |
||||
| Cutting capability(mm） |
● |
Φ260mm |
Φ330mm |
Φ350 |
|||
|
■ |
260( W) x260( H) |
330( W) x330( H) |
350( W) x350( H) |
||||
| Bundle cutting |
Maximum |
240(W)x80(H) |
280(W)x140(H) |
280(W)x150(H) |
|||
|
Minimum |
180(W)x40(H) |
200(W)x90(H) |
200(W)x90(H) |
||||
| Motor power |
Main motor |
2.2kw(3HP) |
3.0kw(4.07HP) |
3.0kw(4.07HP) |
|||
|
Hydraulic motor |
0.75KW(1.02HP) |
0.75KW(1.02HP) |
0.75KW(1.02HP) |
||||
|
Coolant motor |
0.09KW(0.12HP) |
0.09KW(0.12HP) |
0.09KW(0.12HP) |
||||
| Voltage |
380V 50HZ |
380V 50HZ |
380V 50HZ |
||||
| Saw blade speed（m/min） |
40/60/80m/min (by cone pulley) |
40/60/80m/min (by cone pulley) |
40/60/80m/min (by cone pulley) |
||||
| Saw blade size(mm） |
3150x27x0.9mm |
4115x34x1.1mm |
4115x34x1.1mm |
||||
| Work piece clamping |
Hydraulic vice |
Hydraulic vice |
Hydraulic vice |
||||
| Saw blade tension |
Manual |
Manual |
Manual |
||||
| Main drive |
Worm |
Worm |
Worm |
||||
| Material feeding type |
Automatic feed: Grating ruler+Roller |
Automatic feed: Grating ruler+Roller |
Automatic feed: Grating ruler+Roller |
||||
| Feeding stroke（mm） | 400mm,exceed 400mm reciprocating feeding |
500mm,exceed 500mm reciprocating feeding
|
500mm,exceed 500mm reciprocating feeding
|
||||
| Net weight(kg) |
900 |
1400 |
1650 |
||||
2. Standard configuration
★ NC control with PLC screen
★ hydraulic vise clamp left and right
★ manual blade tension
★ bundle cutting device-floating vise
★ steel cleaning brush to remove the blade chips
★ Linear grating ruler-positioning feeding length 400mm/ 500mm
★ Cutting band guard, switch protected.
★ LED work light
★ 1 PC Bimetallic band saw blade
★ Tools & Box 1 set
3.Optional Configuration
★ auto chip conveyor device
★Servo motor material feeding type; feeding length.
★ hydraulic blade tension
★ inverter speed
Related products
-
13″ Precision Bandsaw
Specifications Sawing machine model GS330 double-column structure Sawing capacity φ330mm □330*330mm (width*height) Bundle sawing Max 280W×140H min 200W×90H Main motor 3.0kw Hydraulic motor 0.75kw Pump motor 0.09kw Saw band specification 4115*34*1.1mm Saw band tension manual Saw belt speed 40/60/80m/min Working clamping hydraulic Workbench height 550mm Main drive mode Worm gear reducer Equipment dimensions About...
-
GS300 small band saw, fully automatic
Technical Parameter GS280 GS300 Maximum Cutting capacity(mm) ●: Ф280mm ●: Ф300mm ■: W280xH280mm ■: W300xH300mm Bundle cutting capacity Maximum: W280mmxH100mmMinimum:W190mmxH50mm Maximum: W300mmxH100mmMinimum:W200mmxH55mm Main motor power(KW) 3kw,3 phase, 380v/50hz or customized 3kw,3 phase, 380v/50hz or customized Hydraulic motor power(KW) 0.42kw, 3 phase, 380v/50hzor customized 0....
-
Intelligent High-speed Band Sawing Machine H-330
Specifications Model H-330 Sawing capability（mm） Φ33mm 330( W) x330( H) Bundle cutting（mm） Width 330mm Height 150mm Motor power(kw) Main motor 4.0kw(4.07HP) Hydraulic pump motor 1.5KW(2HP) Coolant pump motor 0.09KW(0.12HP) Saw blade speed（m/min） 20-80m/min(stepless speed regulation) Saw blade size(mm） 4300x41x1.3mm Work piece clamping Hydraulic Saw blade tension Hydraulic Main drive Worm Material feedin...
-

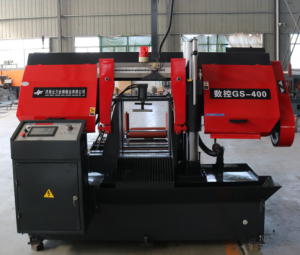

GS400 16″ bandsaw, horizontal metal bandsaw
