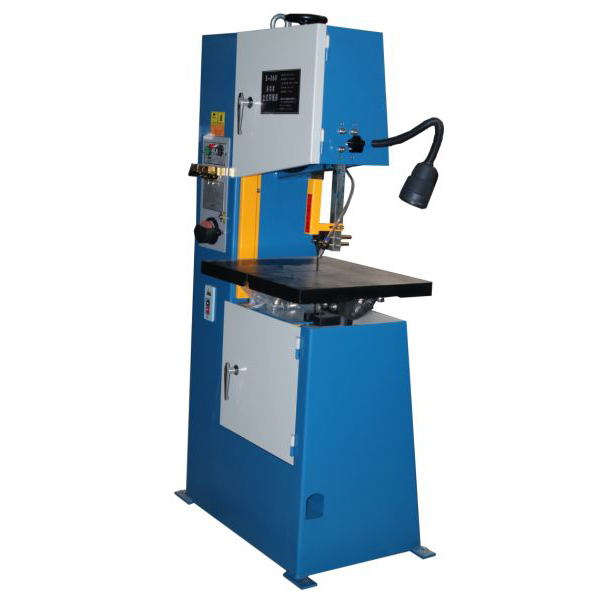

S-600 Vertical Metal & Wood Bandsaw
Technical Parameter
|
Order code |
S-600 |
S-1000 |
|
Max. throat Capacity |
590MM |
1000mm |
|
Max. Thickness Capacity |
320MM |
320MM |
|
Table incline (front & rear) |
10°(front & rear) |
10°(front & rear) |
|
Table incline(left & right) |
15°(left & right) |
15°(left & right) |
|
Table size(mm) |
580×700 |
500X600X2 |
|
Max. Blade length |
4300MM |
4700MM |
|
Blade Width(mm) |
5～19 |
3-16 |
|
Main Motor |
3.2HP |
3.2HP |
|
Voltage |
380V 50HZ |
380V 50HZ |
|
Blade speed (APP.m/min) |
40.64.95.158 78.125.188.314 |
27.43.65.108 53.85.127.212 |
|
Dimension of machine(mm) |
L1380* W 970* H2130 |
L2140*W910*H1880 |
|
Butt-welder Capacity(mm) |
5～19 |
3-16 |
|
Electric Welder |
5.0kva |
2.0kva |
|
Max. Blade width(mm) |
19 |
16 |
|
Weight of machine |
650kgs |
650KG |
Performance Features
◆ Suitable for cutting metals, and other solid material such as wood and plastic.
◆ Variable blade speed adjustment. The machine come with built-in blade cutter and welder.
Product Description
◆ Can make various kinds of cutting such as beveling,shaping ,contour,slicing etc.
◆ Work table can be swiveled.
◆ Blade can be welded easily and reused.
◆ With variable speed can make various material cutting such as metal ,plastic wood rubbe.
◆ Free installation and consulting service.
◆ Free 1 year warranty and after-sale service.
Standard Equipment
◆ Saw blade welder assembly.
◆ Blade cutting unit.
◆ Work lamp.
◆ 1 band saw blade.
◆ Coolant system.
◆ Adjustable material stop for table.
◆ Operator instructions.
